OB1 Smart Sensor
Modular, privacy-first monitoring with clean, AI-ready data.
Modular, privacy-first monitoring with clean, AI-ready data.

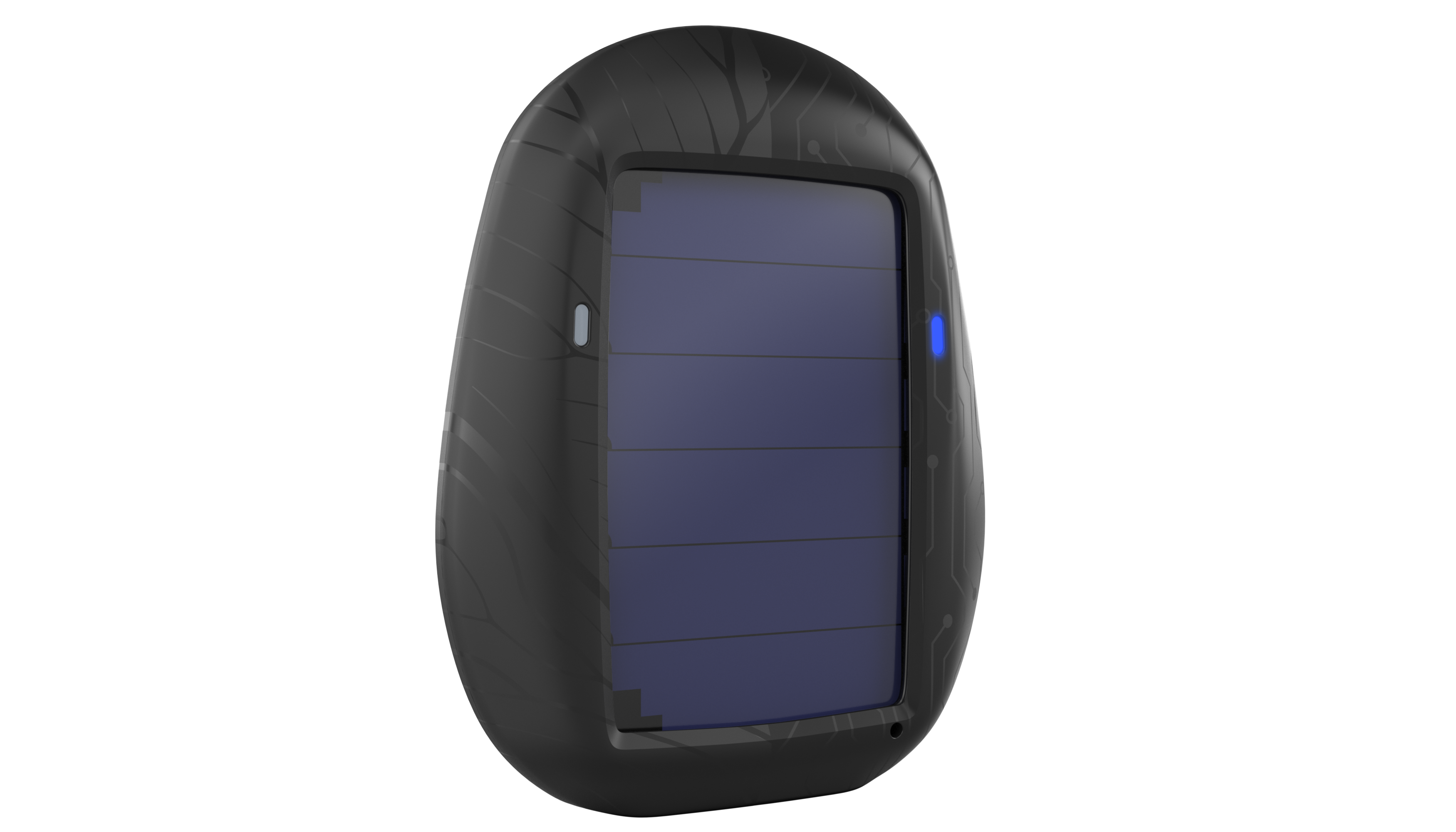

MYnder OB1 is a modular, privacy-first smart sensor designed to retrofit legacy appliances, monitor environments, and integrate seamlessly across residential, commercial, and industrial settings. With Zigbee mesh, BLE 5.0, and solar support, it delivers structured data without cameras or microphones.
Structured, ML-ready data pipeline—no cameras or microphones onboard.
5-pin pogo port for advanced sensor modules and stacked redundancy.
Mesh networking and low-energy connectivity with OTA firmware updates.
Temp, humidity, light, vibration/sound, accelerometer, magnetic & tamper.
Detects circuit states and AC line presence for operational insights.
Rechargeable LiPo (1 000–2 000 mAh) with trickle-charge photovoltaic panel.
Water-resistant, impact-tolerant polycarbonate housing for any environment.
| Component | Specification / Description | Notes |
|---|---|---|
| MCU | Nordic nRF52840 (BLE + Zigbee SoC) | Low power, OTA firmware support |
| Battery | LiPo 1 000–2 000 mAh | Rechargeable, solar-charge input |
| Solar Panel | Mini photovoltaic panel | Trickle charging outdoors |
| Enclosure | IP65 polycarbonate casing | Water-resistant, impact-tolerant |
| Temperature Sensor | Integrated onboard digital sensor | Environmental monitoring |
| Humidity Sensor | Capacitive humidity sensor | Air quality & mold prevention |
| Light Sensor | Ambient light photodiode | Automation trigger |
| Vibration/Sound Sensor | MEMS mic + vibration detection | Dual-purpose component |
| Accelerometer | 3-axis MEMS | Motion, tilt, orientation |
| Magnetic Reed Switches | Standard reed switch ×2 | Contact sensing |
| Tamper Switch | Spring-loaded micro switch | Case-open detection |
| Power Presence Detector | Voltage detector | AC line presence |
| Circuit State Monitor | Relay/voltage detect | Cycle tracking |
| Pogo Port | 5-pin spring-loaded connector | Module expansion |
| PCB | 2-layer custom board | Modular traces, optimized layout |
